Spring Boot 整合Mybatis

Spring Boot 整合Mybatis

目录

一、构建流程

0x01 引入启动器

  • Mysql 驱动
  • Mybatis 启动器
<!--Mybatis配置-->
<dependency>
    <groupId>org.mybatis.spring.boot</groupId>
    <artifactId>mybatis-spring-boot-starter</artifactId>
    <version>2.1.1</version>
</dependency>

<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
    <scope>runtime</scope>
</dependency>

0x02 配置数据源

  • 配置 Mysql 连接信息
spring:
  datasource:
    driver-class-name: com.mysql.jdbc.Driver
    url: jdbc:mysql://localhost:3306/friday?useUnicode=true&characterEncoding=utf-8&allowMultiQueries=true&useSSL=false
    username: root
    password: 123123
    platform: mysql

0x03 配置Mybatis

  • java bean 映射数据表
  • Mapper 定义 sql 行为
# Mybatis配置
mybatis:
  type-aliases-package: com.springbootstudy.first_springboot.model  # 实体pojo的储存路径,项目包名.model
  mapper-locations: classpath:/mybatis-mappers/*  # mapper 配置文件路径
  configuration:
    mapUnderscoreToCamelCase: true # 驼峰转换:将名字从abc_edf 转换微abcEdf

0x04 编写实体类

model 包中建立BaseEntity

@Data
public abstract class BaseEntity<ID extends Serializable> implements Serializable {
    private static final long serialVersionUID = 8925514045582235838L;
    private ID id;
    private Date createTime = new Date();
    @JsonFormat(pattern = "yyyy-MM-dd  HH:mm:ss")
    private Date updateTime = new Date();

}

建立SysUser

@Data
public class SysUser extends BaseEntity<Long> {
    private static final long serialVersionUID = -6525908145032868837L;
    private String username;
    private String password;
    private String nickname;
    private String headImgUrl;
    private String phone;
    private String telephone;
    private String email;

    @JsonFormat(pattern = "yyyy-MM-dd")
    private Date birthday;
    private Integer sex;
    private Integer status;
    private String intro;
}

0x05 编写mapper映射接口

  • 对应我们的 mapper 行为信息

model 下创建 BaseEntity

@Data
public abstract class BaseEntity<ID extends Serializable> implements Serializable {
    private static final long serialVersionUID = 8925514045582235838L;
    private ID id;
    private Date createTime = new Date();
    @JsonFormat(pattern = "yyyy-MM-dd  HH:mm:ss")
    private Date updateTime = new Date();

}

model 下创建 SysUser

@Data
public class SysUser extends BaseEntity<Long> {
    private static final long serialVersionUID = -6525908145032868837L;
    private String username;
    private String password;
    private String nickname;
    private String headImgUrl;
    private String phone;
    private String telephone;
    private String email;

    @JsonFormat(pattern = "yyyy-MM-dd")
    private Date birthday;
    private Integer sex;
    private Integer status;
    private String intro;
}

在dao下创建UserDao

@Mapper
public interface UserDao {
    @Select("select * from sys_user t where t.username = #{username}")
    SysUser getUser(String username);
}

@Mapper注解

  • 为了把 mapper 这个DAO交给 Spring IOC 容器管理
  • 为了不再写 mapper 映射文件
  • 添加 @Mapper 注解的接口生成一个实现类。

@MapperScan注解

可以直接在Springboot的主入口处添加 @MapperScan 扫描指定路径的mapper,就不用在每个dao上都加一个@mapper 注解了。

@MapperScan(basePackages = "com.springboot.study.mapper")

0x06 编写测试代码

@SpringBootTest
class FirstSpringbootApplicationTests {

    //@Autowired 在测试单元中使用Autowried会报错,所以这里使用resource代替
    @Resource
    UserDao userDao;

    @Test
    void contextLoads() {
        SysUser info = userDao.getUser("admin");
        System.out.println(info);
    }
}

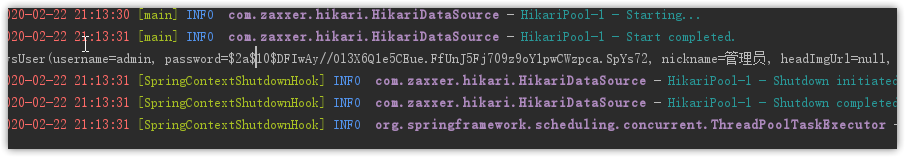

测试结果

0x08 sql数据


-- ----------------------------
-- Table structure for `sys_user`
-- ----------------------------
DROP TABLE IF EXISTS `sys_user`;
CREATE TABLE `sys_user` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `username` varchar(50) NOT NULL,
  `password` varchar(60) NOT NULL,
  `nickname` varchar(255) DEFAULT NULL,
  `headImgUrl` varchar(255) DEFAULT NULL,
  `phone` varchar(11) DEFAULT NULL,
  `telephone` varchar(30) DEFAULT NULL,
  `email` varchar(50) DEFAULT NULL,
  `birthday` date DEFAULT NULL,
  `sex` tinyint(1) DEFAULT NULL,
  `status` tinyint(1) NOT NULL DEFAULT '1',
  `createTime` datetime NOT NULL,
  `updateTime` datetime NOT NULL,
  PRIMARY KEY (`id`),
  UNIQUE KEY `username` (`username`) USING BTREE
) ENGINE=InnoDB AUTO_INCREMENT=45 DEFAULT CHARSET=utf8mb4;

-- ----------------------------
-- Records of sys_user
-- ----------------------------
INSERT INTO `sys_user` VALUES ('1', 'admin', '$2a$10$DFIwAy//Ol3X6Q1e5CEue.FfUnJ5Fj709z9oY1pwCWzpca.SpYs72', '管理员', null, null, '158784879852', '12@qq.com', null, null, '1', '2019-04-08 00:20:51', '2019-04-08 00:20:51');
INSERT INTO `sys_user` VALUES ('2', 'user', '$2a$10$ILWAB4ZOoRr2pXqarliI6uAuL7Q/7dAMTpWO9p7dyVSHHO7zQMTeW', '用户', null, null, '1111111111', '11@qq.com', '2019-03-31', null, '1', '2019-04-09 06:44:50', '2019-04-09 06:44:50');
INSERT INTO `sys_user` VALUES ('3', 'alex', '534b44a19bf18d20b71ecc4eb77c572f', '讲师', null, '', '13245698712', 'alex@qq.com', '2019-03-31', '1', '1', '2019-03-27 02:27:35', '2019-04-09 07:57:17');
INSERT INTO `sys_user` VALUES ('18', 'user1', '96e79218965eb72c92a549dd5a330112', '111', null, null, '123455432123', '134@qq.com', '2019-05-12', null, '1', '2019-05-14 04:44:22', '2019-05-14 04:44:22');

二、整合Druid连接池

什么是连接池?

连接池技术技术会预先建立多个数据库连接对象,然后将连接对象保存到连接池中,当客户请求到来时,从池中取出一个连接对象为客户服务,当请求完成后,客户程序调用close()方法,将连接对象放回池中。

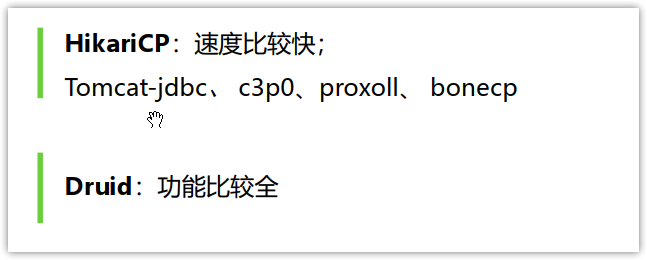

连接池比较

连接池配置

配置依赖

<!--Druid连接池-->
<dependency>
    <groupId>com.alibaba</groupId>
    <artifactId>druid-spring-boot-starter</artifactId>
    <version>1.1.10</version>
</dependency>

在spring.datasource下配置以下信息

# 初始化大小,最小,最大
initialSize: 1
minIdle: 3
maxActive: 20
# 配置获取连接等待超时的时间
maxWait: 60000
# 配置间隔多久才进行一次检测,检测需要关闭的空闲连接,单位是毫秒
timeBetweenEvictionRunsMillis: 60000
# 配置一个连接在池中最小生存的时间,单位是毫秒
minEvictableIdleTimeMillis: 30000
validationQuery: select 'x'
testWhileIdle: true
testOnBorrow: false
testOnReturn: false
# 是否缓存preparedStatement,打开PSCache,并且指定每个连接上PSCache的大小。官方建议MySQL下建议关闭,如果用SQL防火墙 建议打开
poolPreparedStatements: true
maxPoolPreparedStatementPerConnectionSize: 20

创建config包,新建DruidConfig.java

import com.alibaba.druid.pool.DruidDataSource;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import javax.sql.DataSource;

@Configuration
public class DruidConfig {
    @ConfigurationProperties(prefix = "spring.datasource")
    @Bean
    public DataSource druid(){
        return new DruidDataSource();
    }
}

运行测试单元是否正常输出。

三、注解方式进行CRUD

@Setect注解

使用@Result注解定义字段别名

@Results(
    @Result(property = "userName", column = "username"),
    @Result(property = "passWord", column = "password")
)

propertycolumn 分别表示本地pojo和数据库表中字段的对应。

@Insert注解

返回自增主键,使用 @Option

@Options(useGeneratedKeys = true, keyProperty = "id")

返回非自增主键,使用 @SelectKey

@SelectKey(statement = "SELECT LASST_INSERT_ID()", keyProperty = "主键名", resultType = Long.class, before = false)

案例

@Mapper
public interface UserDao {

    // 根据用户名获取用户信息
    @Results(
            @Result(property = "username", column = "username")
    )
    @Select("select * from sys_user t where t.username = #{username}")
    SysUser getUser(String username);

    //删除指定id的用户信息
    @Delete("delete from sys_user where id = #{id}")
    int deleteUser(Long id);

    //插入用户信息
    @Options(useGeneratedKeys = true, keyProperty = "id")
    @Insert("insert into sys_user(username, password, nickname, headImgUrl, phone, telephone, email, birthday, sex, status, createTime, updateTime) values(#{username}, #{password}, #{nickname}, #{headImgUrl}, #{phone}, #{telephone}, #{email}, #{birthday}, #{sex}, #{status}, now(), now())")
    int save(SysUser sysUser);

    //根据用户id获取信息
    @Select("select * from sys_user where id = #{id}")
    SysUser getById(Long id);

}

四、使用配置方式CRUD

官方文档: http://www.mybatis.org/mybatis-3/zh/sqlmap-xml.html

注解+xml的编码步骤

在通常的情况下,一些简单的sql操作我们都使用注解方式进行,较为复杂的一些操作我们使用xml配置进行,因为xml配置更便于后期的维护。

  • 编写抽象的方法
  • 配置xml扫描路径
  • 编写mapper.xml

编写抽象接口

//更新用户信息
int updateUser(SysUser user);

配置xml扫描路径

# Mybatis配置
mybatis:
  type-aliases-package: com.springbootstudy.first_springboot.model  # 实体pojo的储存路径,项目包名.model
  mapper-locations: classpath:/mybatis-mappers/*  # mapper 配置文件路径
  configuration:
    mapUnderscoreToCamelCase: true # 驼峰转换;将名字从abc_edf 转换微AbcEdf

在项目resources 目录下新建mybatis-mappers目录,编写mapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.sxbang.friday.dao.UserDao">

   <update id="updateUser">
      update sys_user t
      <set>
         <if test="username != null">
            username = #{username},
         </if>
         <if test="nickname != null">
            nickname = #{nickname},
         </if>
         <if test="headImgUrl != null">
            headImgUrl = #{headImgUrl},
         </if>
         <if test="phone != null">
            phone = #{phone},
         </if>
         <if test="telephone != null">
            telephone = #{telephone},
         </if>
         <if test="email != null">
            email = #{email},
         </if>
         <if test="birthday != null">
            birthday = #{birthday},
         </if>
         <if test="sex != null">
            sex = #{sex},
         </if>
         <if test="status != null">
            status = #{status},
         </if>
         updateTime = #{updateTime}
      </set>
      where t.id = #{id}
   </update>
</mapper>

五、单元测试

  • 单元测试 是测试应用程序的功能是否能按需要正常运行。
  • 单元测试 是一个对单一实体(类或方法)的测试
  • 单元测试 是软件公司提高产品质量、满足客户需求的重要环节。

六、代码生成插件

在IDEA中安装 GenerateAllSetter 插件,在创建实体类时可以自动为我们生成对象的 setter 方法,例如

TbUser tbUser = new TbUser();
tbUser.setUsername("Lusifer");
tbUser.setPassword("123456");
tbUser.setPhone("15888888888");
tbUser.setEmail("topsale@vip.qq.com");
tbUser.setCreated(new Date());
tbUser.setUpdated(new Date());
tbUserMapper.insert(tbUser);

案例代码如下

import java.util.Date;
import com.funtl.hello.spring.boot.domain.TbUser;
import com.funtl.hello.spring.boot.mapper.TbUserMapper;
import com.github.pagehelper.PageHelper;
import com.github.pagehelper.PageInfo;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.annotation.Rollback;
import org.springframework.test.context.junit4.SpringRunner;
import org.springframework.transaction.annotation.Transactional;
import tk.mybatis.mapper.entity.Example;
import java.util.List;
@RunWith(SpringRunner.class)
@SpringBootTest
@Transactional
@Rollback
public class HelloSpringBootApplicationTests {
    /**
     * 注入 DAO
     */
    @Autowired
    private TbUserMapper tbUserMapper;
    /**
     * 查询
     */
    @Test
    public void testSelectAll() {
        List<TbUser> tbUsers = tbUserMapper.selectAll();
        tbUsers.forEach(tbUser -> {
            System.out.println(tbUser);
        });
    }
    /**
     * 条件查询
     */
    @Test
    public void testSelectCondition() {
        Example example = new Example(TbUser.class);
        example.createCriteria().andEqualTo("username", "zhangsan");
        List<TbUser> tbUsers = tbUserMapper.selectByExample(example);
        tbUsers.forEach(tbUser -> {
            System.out.println(tbUser);
        });
    }
    /**
     * 新增
     */
    @Test
    public void testInsert() {
        TbUser tbUser = new TbUser();
        tbUser.setUsername("Lusifer");
        tbUser.setPassword("123456");
        tbUser.setPhone("15888888888");
        tbUser.setEmail("topsale@vip.qq.com");
        tbUser.setCreated(new Date());
        tbUser.setUpdated(new Date());
        tbUserMapper.insert(tbUser);
    }
    /**
     * 更新
     */
    @Test
    public void testUpdate() {
        TbUser tbUser = tbUserMapper.selectByPrimaryKey(37L);
        tbUser.setUsername("Happy");
        tbUserMapper.updateByPrimaryKey(tbUser);
    }
    /**
     * 修改
     */
    @Test
    public void testDelete() {
        tbUserMapper.deleteByPrimaryKey(37L);
    }
    /**
     * 分页
     */
    @Test
    public void testPage() {
        Example example = new Example(TbUser.class);
        example.createCriteria().andLike("username", "z%");
        PageHelper.startPage(1, 5);
        PageInfo<TbUser> pageInfo = new PageInfo<>(tbUserMapper.selectByExample(example));
        System.out.println(pageInfo.getTotal());
        System.out.println(pageInfo.getPages());
        pageInfo.getList().forEach(tbUser -> {
            System.out.println(tbUser);
        });
    }
}
